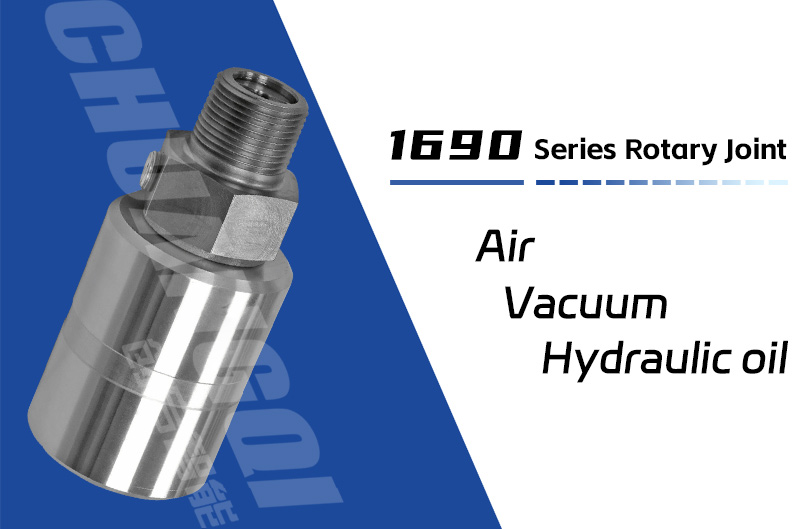

| 介質 空氣 最大使用壓力： | DN | 145 PSI | 10 bar | |
| 介質 液壓油 最大使用壓力： | 3000 PSI | 207 bar | ||
| 最大真空度： | 28" Hg | |||
| 最高使用速度（轉子）： | ||||
| DN | 250 RPM | 250 min-1 | ||
| 最高使用溫度： | 120℃ | ＞120℃ 請咨詢創啟旋轉接頭 | ||

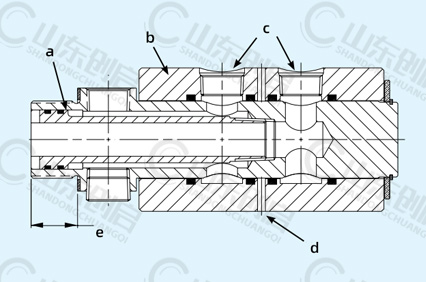

a.旋轉軸
b.殼體
e—連接螺紋

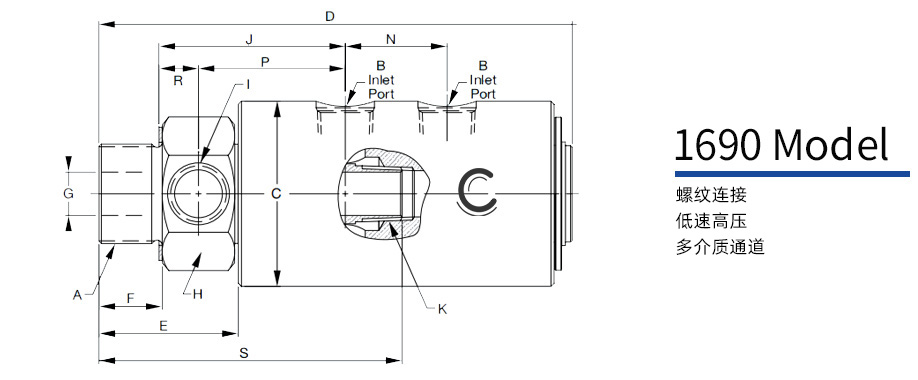

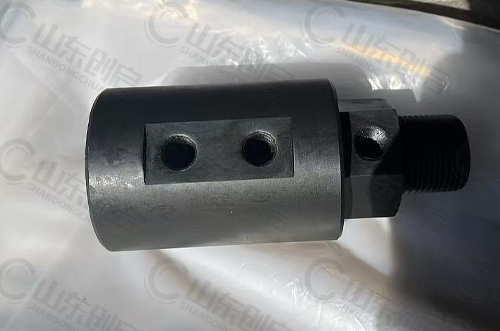

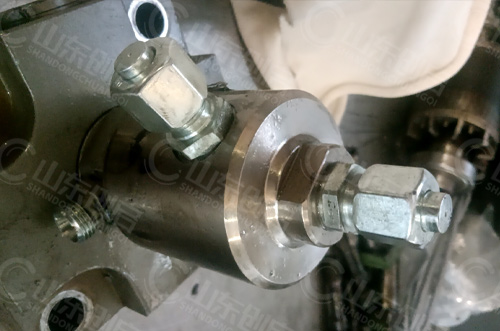

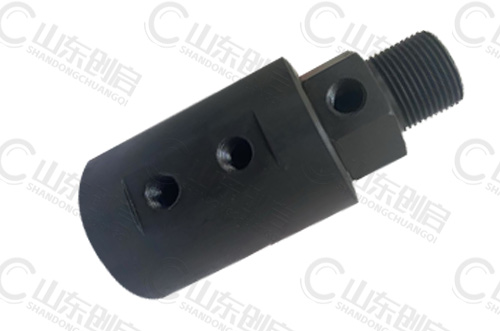

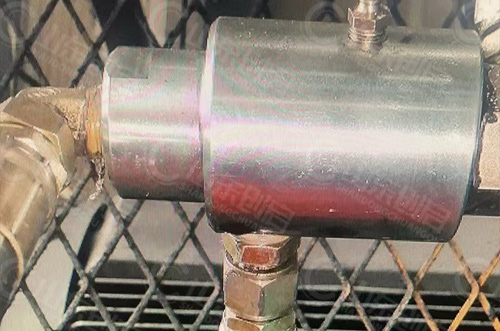

| 1690型兩通路液壓旋轉接頭 - 雙通路 - 螺紋連接 | ||||||||||||||||
| Model | B Port NPT | A Rotor Thread | C Dia. | D | E | F | G Rotor ID | H** Across Flats | I Tap NPT | J Lock-up | K Tap NPT | N | P | R | S | Shpg Wt. |
| 1690-000-115 | (2)x1?4" | 1" NPT RH | 2-5?8" | 5-7?8" | 2-3?16" | 1-1?8" | 5?16" | 46 | 1?4" | 2-5?8" | 1?4" | 1-5?32" | 1-11?16" | ?2" | – | 3-1?2# |
| 1690-000-102* | (2)x1?4" | 1" NPT RH | 2-5?8" | 5-7?8" | 2-3?16" | 1-1?8" | 11?16" | 46 | 1?4" | 2-5?8" | 1?4" | 1-5?32" | 1-11?16" | ?2" | 3-25?32" | 3-1?2# |
| 1690-000-168 | (2)x1?4" | G1" (BSP) RH | 66.6 | 150 | 55.5 | 18 | 7.9 | 46 | 1?4" | 67.8 | 1?4" | 29.4 | 42.9 | 17 | – | 1.6 Kg |
| 1690-000-105* | (2)x1?4" | G1" (BSP) RH | 66.6 | 150 | 55.5 | 18 | 7.9 | 46 | 1?4" | 67.8 | 1?4" | 29.4 | 42.9 | 17 | 96 | 1.6 Kg |
